CE Series

CE Series

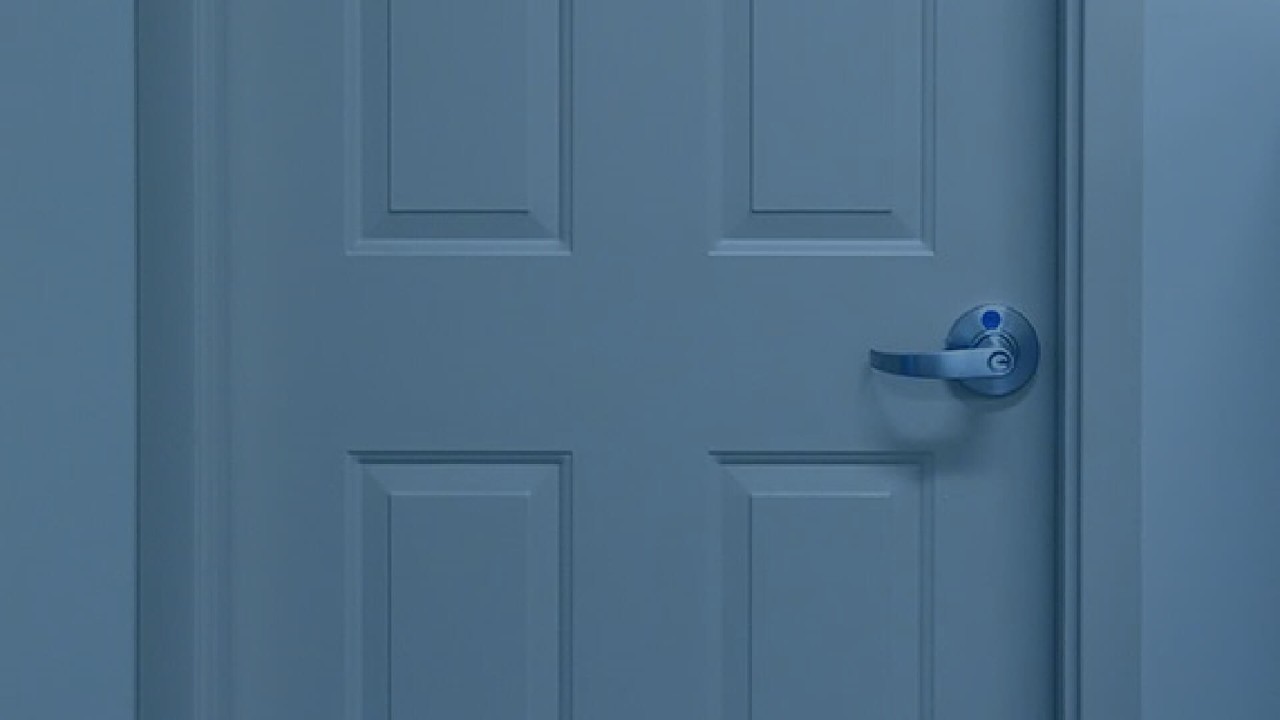

CE Series embossed doors are designed to meet the architectural requirements for embossed panel doors, from light to 16 gauge extra heavy duty. Premium standard door construction combines a beveled lock and hinge side, strong epoxy filled interlock edges, and unsurpassed 7 gauge hinge reinforcement. The continuous bonding of the laminated core to steel face sheets provides an attractive, flat door, free of face welding marks. Tests have proven that the CE Series door has a high resistance to impact damage, low thermal conductivity and high STC ratings.

  • Available in 6-panel E6 and E6TL (top 2 panels are lights) and 8-panel E8 designs
  • Available in high definition embossment 2-panel designs (HD2 square; HD2A rounded top edge)







FEATURES AND BENEFITS

Strength, durability and ease of installation

  • Polystyrene core system, laminated to both steel faces, enhancing the structural integrity of the whole door and providing the benefit of enhanced thermal performance
  • Beveled hinge and lock side edges have tighter tolerances and smaller gaps between door and frame face for a better visual appearance and ensuring easier operation and eliminating binding and sticking
  • Full height, epoxy filled mechanical interlock edges provide structural support and stability the full height of the door edges
    • Edges may be filled (with tack welds around edge openings)
  • Patented universal hinge preparations allow for easy field conversion from standard-weight to heavyweight hinges
  • Standard 14 gauge inverted top and bottom channels provide excellent door stability, and is able to be dressed with top and bottom caps
  • Recessed Dezigner™ Glass Trim creates clean edge, flush with the door surface

Exceeds industry standards

  • Steelcraft is SDI Certified through regular audits to ensure manufacturing, performance and quality standards set by the Steel Door Institute
  • Overall door construction exceeds ANSI A250.8-2017 (SDI-100), the standard set by SDI specifying sizes, design, materials, construction, finishing and performance for standard commercial steel doors and frames
  • Hardware preparations and reinforcements meet ANSI A250.6-2003, and locations meet ANSI/DHI A115, unless otherwise stated
  • Doors meet the broadest fire rating requirements; they are listed for installations requiring compliance to both neutral pressure testing (ASTM E152 and UL-10B) and positive pressure standards (UL-10C)
  • Factory-applied baked-on rust inhibiting primer meets ANSI A250.10-2011

Typical applications

Panel doors for a more customized architectural aesthetic.

Technical Data Guide

For more complete information on CE Series doors, download the Steelcraft Technical Data Manual

  • CE Series (Pages 117-120): Includes options (p 125), lights (p 153), hardware preps (p 235), fire rated products (p 277), performance (p 323)
