INPACT Series Door Systems

Default Promo Image Alt

The INPACTTM Door System is available on L Series and T Series doors with factory-installed Von Duprin 94/95 INPACTTM Recessed exit hardware. Sold as a custom assembly, the system includes hardware from the Allegion suite of brands, known and trusted across the industry: Von Duprin Exit Devices , LCN Closers , LCN Magnetic Holders , IVES Hinges , and Zero Thresholds and Gasketing.

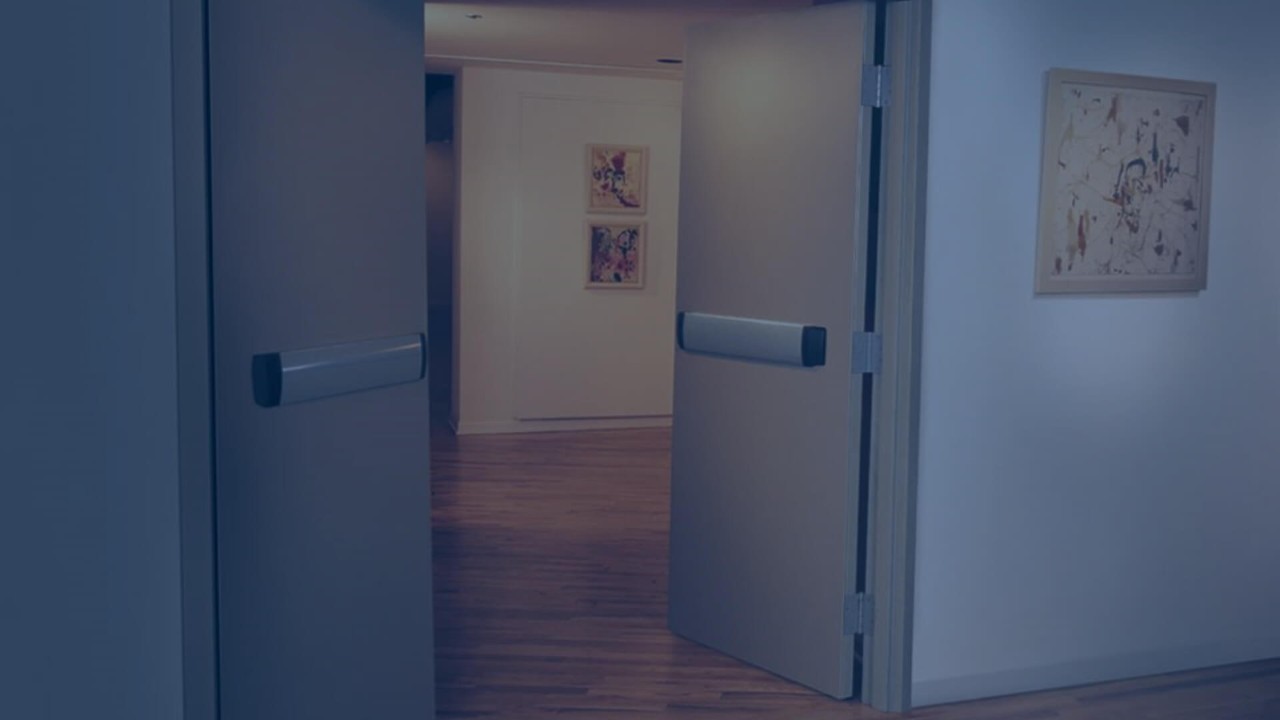

The INPACTTM Series door system is ideal for cross-corridor applications where maximum clear opening width is required. Fully rated for a smoke or fire opening, this solution insets the door and exit hardware so they blend into the wall for a clean aesthetic. Include the INPACTTM Series in your healthcare, hospitality, multi-family, office, or educational facilities for a sleek, comprehensive, and reliable solution.

FEATURES AND BENEFITS

One order, one shipment, one invoice

  • Includes factory-installed Von Duprin 94/95 Recessed Exit to reduce customer costs and improve speed of installation at the job site
  • Additional hardware options available, shipped with the Steelcraft doors to arrive together at the job site, including LCN Closers, IVES Hinges, and LCN SEM Wall magnet Hold-opens
  • A la carte hardware options to order door preps for hardware not offered
  • Hand-stained GRAINTECH™ embossed finishes, fire rated 20 minutes to 3 hours, as well as INPACT exit device finish options, provide an attractive, durable, high-quality look
  • Recessed Dezigner™ Glass Trim creates clean edge, flush with the door surface. Lights available in G (modified) N4, N5, and Vision options
  • See L Series and T Series door benefits

Specification & Ordering Resources

Access the following under "Downloads" for a full set of resources to get started on an order:

  • Order forms (2 formats)
    • Excel format
      • Includes reference to system set matrix
      • Rollover choices & tips
      • Integrated pricing worksheet
      • Tabs with Starter examples based on system sets
    • PDF format
      • Includes reference to system set matrix and excel rollover notes as end notes
  • 12 detailed application drawing layouts with architectural images
  • System Set Matrix of 12 pre-configured assembly solutions
    • D1-D4 – Double Egress applications
    • P1-P4 – Pair applications (same swing)
    • S1-S4 – Single door applications
  • Closer Codes:  Reference for ordering the correct closer configurations per application set
  • 08 17 13 INPACT Integrated Door System specification supported by Overtur
  • Technical Data Manual

Exceeds industry standards

  • Steelcraft is SDI Certified through regular audits to ensure manufacturing, performance and quality standards set by the Steel Door Institute
  • Hardware meets ANSI/BHMA A156.3 2014
  • SDI/A250.4 to 1 Million Cycles and a 350 lb. cart impact
  • Overall door construction exceeds ANSI A250.8-2017 (SDI-100), the standard set by SDI specifying sizes, design, materials, construction, finishing and performance for standard commercial steel doors and frames
  • Hardware preparations and reinforcements meet ANSI A250.6-2003, and locations meet ANSI/DHI A115, unless otherwise stated
  • Doors meet the broadest fire rating requirements; they are listed for installations requiring compliance to both neutral pressure testing (ASTM E152 and UL-10B) and positive pressure standards (UL-10C)
  • Factory-applied baked-on rust inhibiting primer meets ANSI A250.10-2011
